1. Kondisi

2. Hardware

3. Rangkaian Simulasi

4. Flowchart

5. Listing Program

6. Video

7. Link Download

1. Kondisi [Kembali]

Kondisi awal LED mti lalu hidup bergantian, LED 1,3,5,7 selanjutnya 2,4,6,8 secara berulang

2. Hardware [Kembali]

LED

arduino

resistor

power supply

3. Rangkaian Simulasi [Kembali]

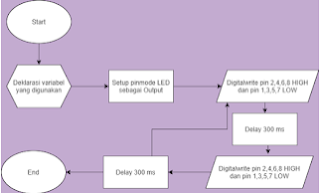

4. Flowchart [Kembali]

5. Listing Program [Kembali]

int LED1=2;//mengenali Varibel LED1 untuk pin 2

int LED2=3;//mengenali Varibel LED2 untuk pin 3

int LED3=4;//mengenali Varibel LED3 untuk pin 4

int LED4=5;//mengenali Varibel LED4 untuk pin 5

int LED5=6;//mengenali Varibel LED5 untuk pin 6

int LED6=7;//mengenali Varibel LED6 untuk pin 7

int LED7=8;//mengenali Varibel LED7 untuk pin 8

int LED8=9;//mengenali Varibel LED8 untuk pin 9

void setup()

{

pinMode(2, OUTPUT);

pinMode(3, OUTPUT);

pinMode(4, OUTPUT);

pinMode(5, OUTPUT);

pinMode(6, OUTPUT);

pinMode(7, OUTPUT);

pinMode(8, OUTPUT);

pinMode(9, OUTPUT);

}

void loop()

{

delay(1000);

digitalWrite(2, HIGH);

digitalWrite(3, LOW);

digitalWrite(4, HIGH);

digitalWrite(5, LOW);

digitalWrite(6, HIGH);

digitalWrite(7, LOW);

digitalWrite(8, HIGH);

digitalWrite(9, LOW);

delay(1000);

digitalWrite(2, LOW);

digitalWrite(3, HIGH);

digitalWrite(4, LOW);

digitalWrite(5, HIGH);

digitalWrite(6, LOW);

digitalWrite(7, HIGH);

digitalWrite(8, LOW);

digitalWrite(9, HIGH);

}

6. Video [Kembali]

7. Link Download [Kembali]

Rangkaian download

video download

HTML download
